Description

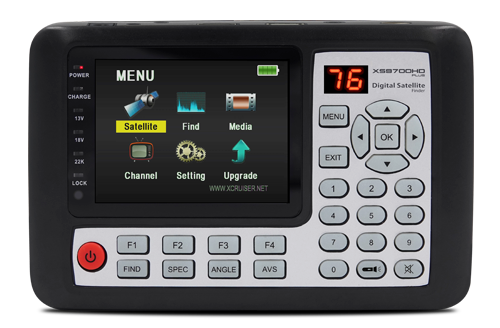

In the era of CCTV cameras, Xcruiser is proud to present a combo of Satellite & CCTV; the XS9700HD PLUS.
This state of the art, tough Digital Satellite finder has been built for convenient installation of Satellite Dish-Antennas and CCTV A-HD cameras of up to 8 mega pixels.
The XS9700HD PLUS is the successor of the XS9700HD; with additional hardware and software functionalities, such as; fixed Torch-light, Keypad backlight and specified 1.5 jack pin for CCTV cameras.
Equipped with a 4400mAh battery, which can supply constant power to LNB’s various polarity requirements and a continuous power supply line of 12V-1A for CCTV cameras.


The Input / Output ports will allow the device to get connected with the larger sized LED/LCD screens, or smaller sized CRT televisions. The HDMI output will support various resolutions, from 576i up to 1080p. The AV input and the output will extend the connectivity with old CRT televisions. The High Definition display screen of 3.5inch, will give clear live video of CCTV camera, as well as Satellite channels video and audio.

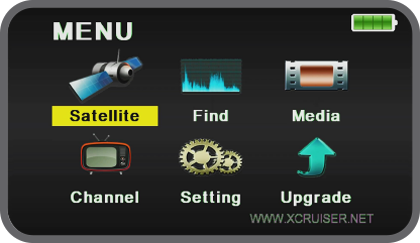

MAIN MENU

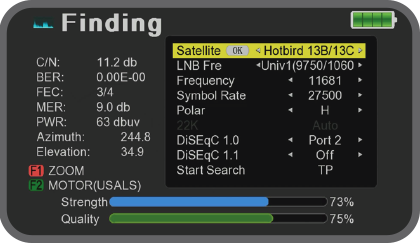

SATELLITE FINDING

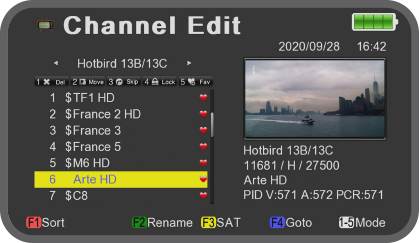

CHANNEL EDITOR

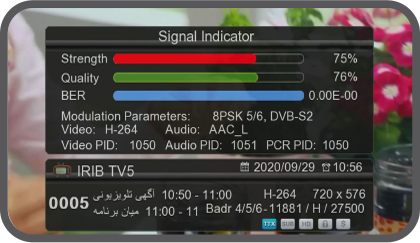

SIGNAL INDICATOR IN LIVE TV

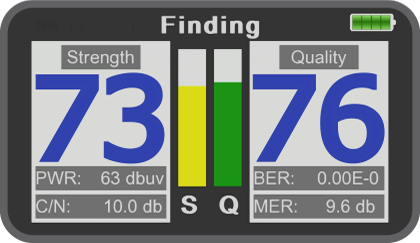

SIGNAL ZOOM

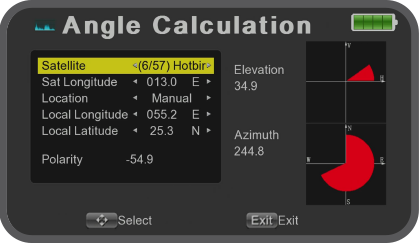

ANGLE CALCULATOR

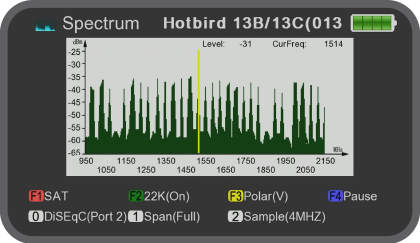

SPECTRUM ANALYZER

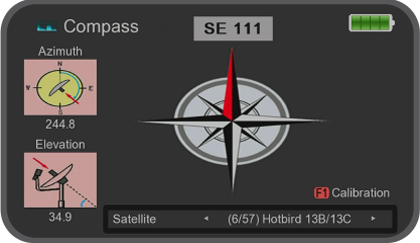

ELECTRONIC COMPASS

Features

Torch light
Keypad backlight
Luminous rubber keypad
Signal LED digits
Spectrum analyzer
Satellite identification
Signal zoom, strength and quality
Add, edit, delete TP satellite list
Support EPG multi language
Media player; audio, video, image
PVR function record and play
Software upgrade, backup and restore
Dish angle calculator
Channel editor add, edit, delete, move, lock and favorites
LNB short circuit and overload protection, software and hardware
Satellite scan; manual (TP), auto (Satellite) blind and super blind
Indicators light for power, charge, 13-18V, 22K and lock
Constellation analyzer by channel and frequency
Menu languages; Arabic, English, Persian, Russian, French and Turkish

Hardware Specifications

Tuner Type; DVB-S, DVB-S2
Signal level; -65 to -25dBm
Impedance; 75Ω
22KHz tone; 22 ± 1KHz
Symbol rate; 1 to 60Msps
Power consumption; 10W max
Battery; 8.4V / 4400mAh
HDMI output 576i to 1080P
CCTV power output; 12V DC
One USB2.0 port
Hardware reset button
Remote control unit
CCTV Input; CVBS, TVI, CVI and AHD up tp 8.0 MP
Transport stream; MPEG-2/4, H.264
Frequency range; 950MHz to 2150MHz
LNB power; vertical-13V, horizontal-18V
Charging adaptor; AC 100 to 240 50/60Hz, 12V-2A DC
Demodulation: QPSK, 8PSK, 16APSK and 32APSK
DiseqC version; 1.0, 1.1, 1.2, 1.3 and USALS
LNB current; 500mA max overload protection
