Description

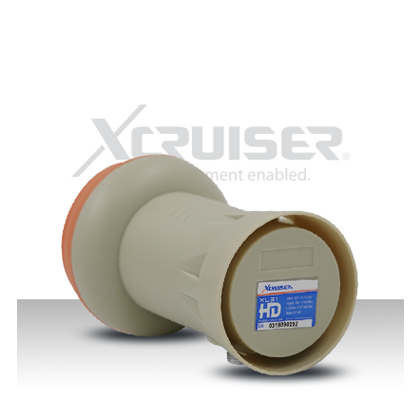

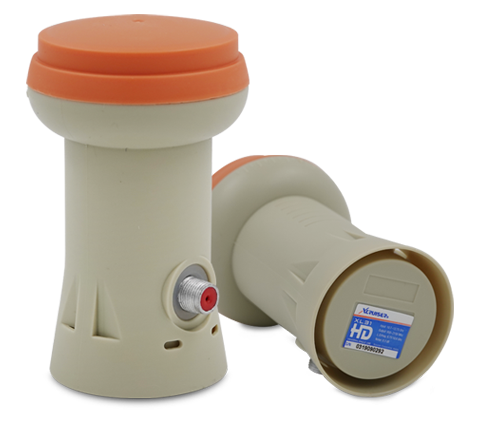

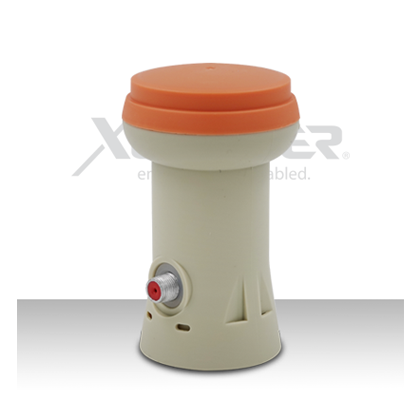

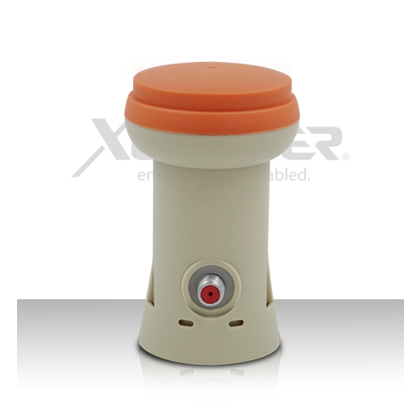

Universal Linear Single Ku-band LNB, PLL (Phase Locked Loop Design) is used for single Set Top Box (STB).

Full coverage of Ku-band: For Free to Air receiver and superior Ku-band reception.

Low noise figure: Low noise figure Single LNB allows reception of Ku-band signals with the highest possible signal level and quality.

Weather protection: Built with heat and waterproof material.

Support: Low power consumption and easy installation.

Product Specification

Input Frequency Range: Low Band 10.70~11.70GHz, High Band 11.70~12.75GHz
Output Frequency Range: Low Band 950~1950MHz, High Band 1100~2150MHz
Noise Figure: Low Band 0.3dB, High Band 0.3dB
Conversion Gain: 65dB
Gain Flatness: ±0.5dB/27MHz
Cross POL. Isolation: 20dB
L.O. Frequency: Low Band 9.75GHz, High Band 10.60GHz
L.O. Frequency Stability: ±1.0MHz (Max) @+25℃, ±2.0MHz (Max) @-30~+70℃



Operating Temperature: -40℃~+60℃
L.O. Phase Noise: -60dBc/Hz@1KHz, -80dBc/Hz@10KHz, -100dBc/Hz@100KHz
Image Rejection: 40dB(Min)
Output VSWR: 2.0:1(Max)
Output Power: 0dBm (Min) (at 1dB gain compression)
Connector Type: 75Ω Female Connector
DC Current Consumption: 120mA
Low/High Band Switching: Low Band 0 Hz, High Band 22KHz±4KHz
POL. Switching Voltage: 10.5~14.2V @VP, 15.5~21V @HP
